Product Name: XYZ Electric Three-Dimensional Stage

Share
Specification:

Electriclift table PT-GD425

MODEL

PT-GD425

TABLE size(mm)

200×200

Stroke(mm)

25

resolution(8 segments)

0.0005

Repeatable positioning accuracy(mm)

0.003

Screw lead(mm)

1.5

A motor is standard

57 stepper motor(1.8°)

static turning distance(N.M)

1.2

Rated operating current

2.8

speed (2 subdivisions)

10mm/s

Center Load(kg)

50

Dead weight(kg)

7.5



Product details:

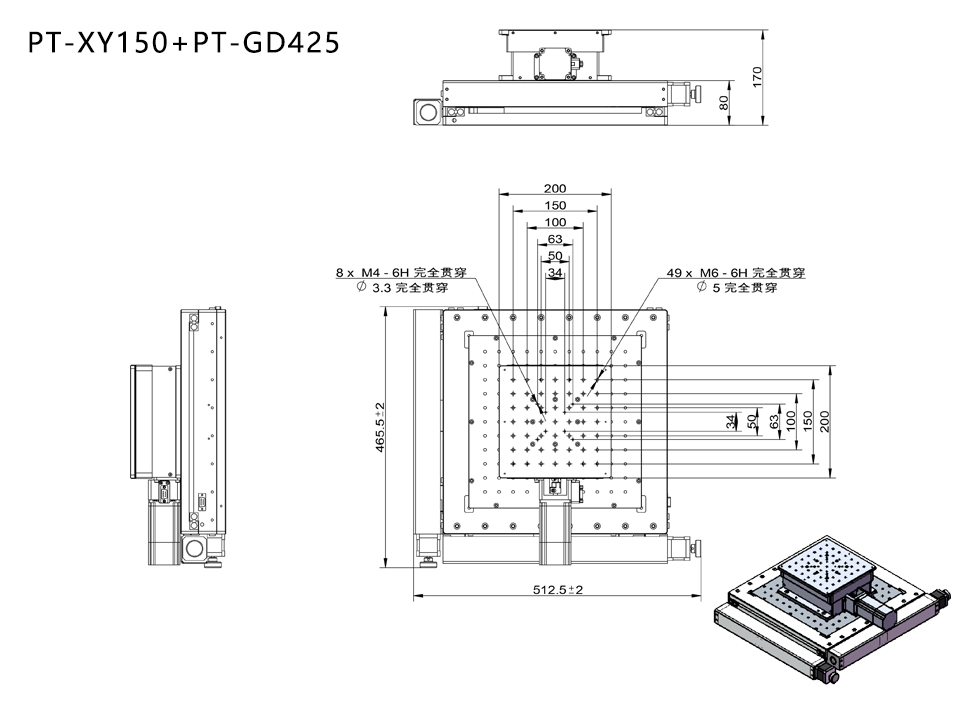

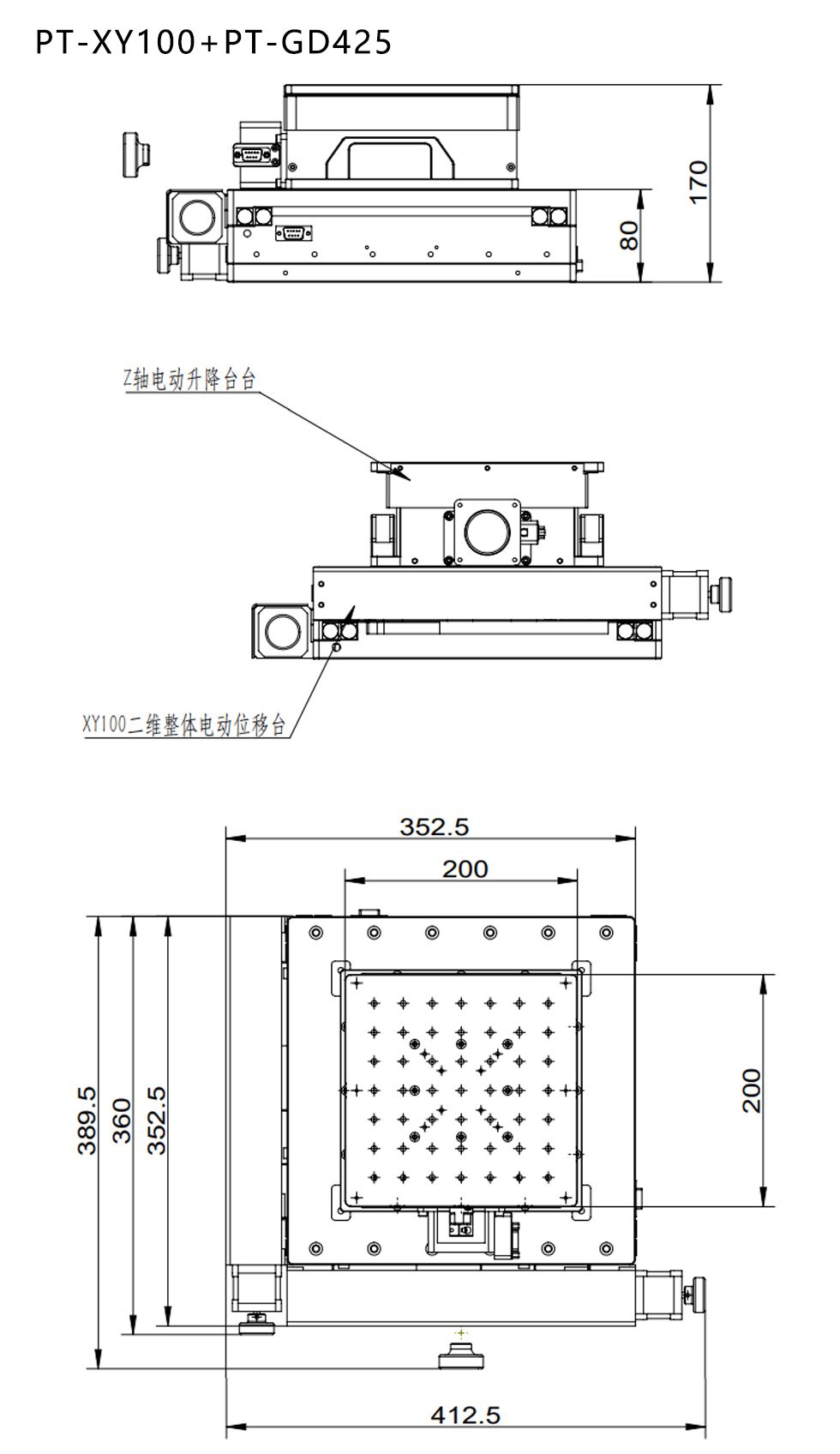

Electric integral combination tablePT-XY100

Product modelPT-XY100PT-XY150
Structural parametersThe travel of the X and Y axes100 mm150 mm
Countertop size300×300mm350×350mm
Screw lead4 mmPrecision ball screw (lead 4mm)
Guide railPrecision crossed roller guide railsCrossed roller guide rail
Stepper motor (step Angle)42(1.8°)42BYGH47-1684
Main materialAluminum alloyAluminum alloy
Surface treatmentAnodic oxidation turns blackAnodic oxidation turns black
Load-bearing at the center of the countertop50 kg51 kg
Platform self-measurement8.3 kg9.7kg
Precision parameterResolution20μm(No segmentation),2.5μm(8segmentation)20μm(No segmentation),1μm(20segmentation)
Speed40mm /sec30mm /sec
Repeat positioning accuracy2μm3μm
Positioning accuracy (optional grating)3μm——
Straightness5μm8μm
Motion parallelism15μm20μm
Pitch and pitch50″80″
Offset pendulum25″30″
Return gap2μm5μm
Lose step2μm2μm
A grating ruler can be installed(G)——
Replaceable servo motor(D)——
