Precision Electric Goniometer Stage (Worm Gear): PT-GD303
Product features:
※ stepper motor is equipped as standard, which can be automatically controlled by the company's motion controller.
※ the rotating shaft system is precision machined by multi-channel technology, with high matching accuracy, large bearing capacity and long service life.
※ it adopts the worm gear and worm structure with precise research and matching, with comfortable movement, forward and reverse rotation and small empty return.
※ the ingeniously designed air return structure can adjust the air return gap caused by long-term use.
※ the special structural design ensures the low deflection and inclination of the corner table, making the movement more stable.
※ the scale circle on the periphery of the table is a laser marking scale, which can rotate relative to the table to facilitate initial positioning and reading.
※ stepper motor and worm are connected through elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces eccentric disturbance and low noise.
※ the electric angle table can be used horizontally or vertically. It can form a multi-dimensional electric adjustment table with other types of tables.
※ the electric angle table is designed in pairs, which can be superimposed and can be used alone. The two rotation radii are carefully designed. After superposition, it can rotate around a common point in two dimensions.
※ it has limit function and initial zero function. It is equipped with servo motor and rotary encoder. It accepts product restructuring and customization.
Model Number | PT-GD303 |
Rotation Range | ±45° |
Platform Size | 90×105mm |
Transmission Ratio | 280∶1 |
Height of Rotation Stage | 50 mm±0.2 mm |
Drive Mechanism | Worm Gear |
Travel Guide | Crossed Roller Bearing |
Stepper Motor (1.8°) | 42BYG |
Material Surface | Aluminum Alloy (Black-Anodized) |
Central Load | 10kg |
Weight | 2.45kg |
Design Resolution | ≈0.005°≈18″(Non-MS Driver) |
≈1″(20MS Drive) | |
Rotation Center Deflection Accuracy | 0.03 mm |
Velocity | 7°/sec |
Repeatability | ±3″ |
Absolute Accuracy | ±8″ |
Backlash | ±3″ |
Lost Motion | 3″ |

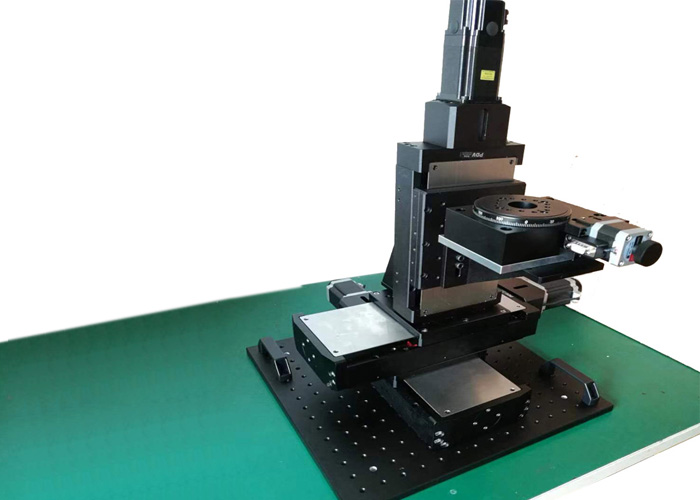

Motorized Integral Combination Stage: PT-XY100
Product features:
※ stepper motor is equipped as standard, which can be automatically controlled by the company's motion controller.
※ the product is small and light in structure, which is suitable for use under light load and low speed, as well as in scientific experiments.
※ high quality fine grinding lead screw drive, small lead, the same fine fraction can achieve high resolution.
※ the ingenious structural design of air elimination check nut can minimize the clearance of grinding lead screw pair.
※ the precision square guide rail is comfortable to move, and has the function of laterally adjusting the guide rail preload and eliminating clearance. It can be used in multi-dimensional combination.
※ the fine grinding of the bottom plate of the electric moving table and the reasonable fixing mode of the guide rail greatly reduce the pitch and yaw of the electric moving table, and greatly improve the straightness and parallelism of the movement.
Model Number | PT-XY100 | |
Structure | Travel Range(mm) | 100mm |
Platform(mm) | 300mm x 300mm | |
Screw Guide | 4 | |
Travel Guide | Precise Crossed Roller Bearing | |
Stepper Motor | 42(1.8°) | |
Material | Aluminum Alloy | |
Surface Preparation | Black-Anodized | |
Load Capacity(Kg) | 50 | |
Weight(Kg) | 8.3 | |
Accuracy | Resolution(μm) | 20(Non MS), 2.5(8 MS) |
Velocity | 40mm/sec | |
Repeatability(μm) | 2 | |
Absolute Accuracy(μm) | 3 | |
Straightness(μm) | 5 | |
Moving Parallelism(μm) | 15 | |
Pitching | 50" | |
Yawing | 25" | |
Backlash(μm) | 2 | |
Lost Motion(μm) | 2 | |
Accessory | Installing Grating Ruler (Optional) | |
Reloading Servo Motor (Optional) | ||
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
