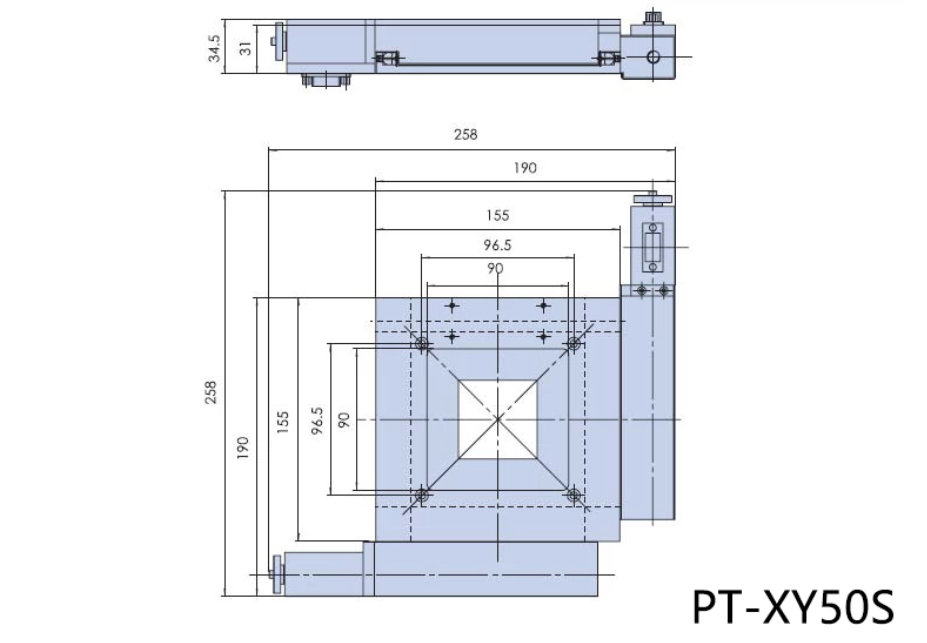

| Product model | PT-XY50S | |
| Structural Description | X and Y axis travel | 50mm |
| Work surface size | 155×155mm | |
| Screw specification | High-grade screw pair | |
| Guide rail | Precision-level crossed roller guide rail | |
| Stepper motor (step angle) | Japanese Shinano 28 (1.8°) motor | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Surface load (kg) | 10 | |
| Weight (kg) | 3.2 | |
| Precision description | Resolution | 5μm(No segmentation)，0.625μm(8 segmentation) |
| Speed | 6mm/sec | |
| Repeatability of positioning accuracy | 8μm | |
| Positioning accuracy (optional with grating) | 10μm | |
| Straightness | 5μm | |
| Motion parallelism | 15μm | |
| Pitching | 50” | |
| Yawing | 25” | |
| Return gap | 2μm | |
| Step loss | 2μm | |
| Optional installation of grating scale(G) | ||
| Replaceable servo motor(D) | ||
New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on .
