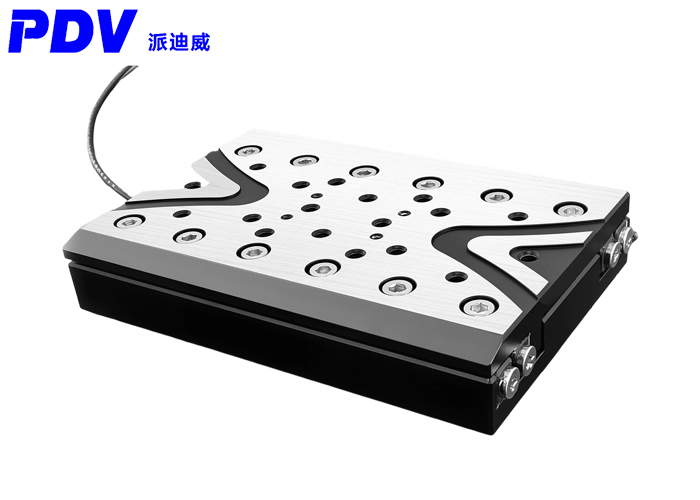

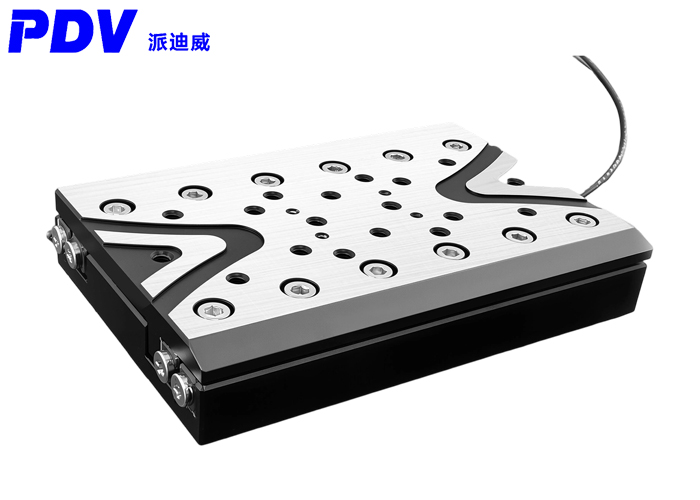

Product features:
■ Closed-loop minimum step size can reach 3nm
■ Travel range: 40mm, customizable
■ Retention force can reach 3.5N, with high stability
■ Supports two-dimensional and three-dimensional combination expansion, as well as multi-axis collaboration
Product parameters:
| Model number | PT-NML40 |
| Itinerary | ±20mm |
| Size | 90×60×16mm |
| Driving force | 3N |
| Retaining force | 3.5N |
| Maximum no-load speed | 3mm/s |
| Sensor type | Grating sensor |
| Sensor resolution | Options available: 1nm, 5nm, 10nm |
| Pitch/Yaw | <200urad |
| Single/Two-way repeatability accuracy | ±50nm/±120nm |
| Minimum displacement | 3nm |
| Maximum phase load | 3kg |
| Maximum axial load | 0.3kg |
| Electrical interface | D-sub15 |
| Vacuum (optional) | High vacuum compatibility |

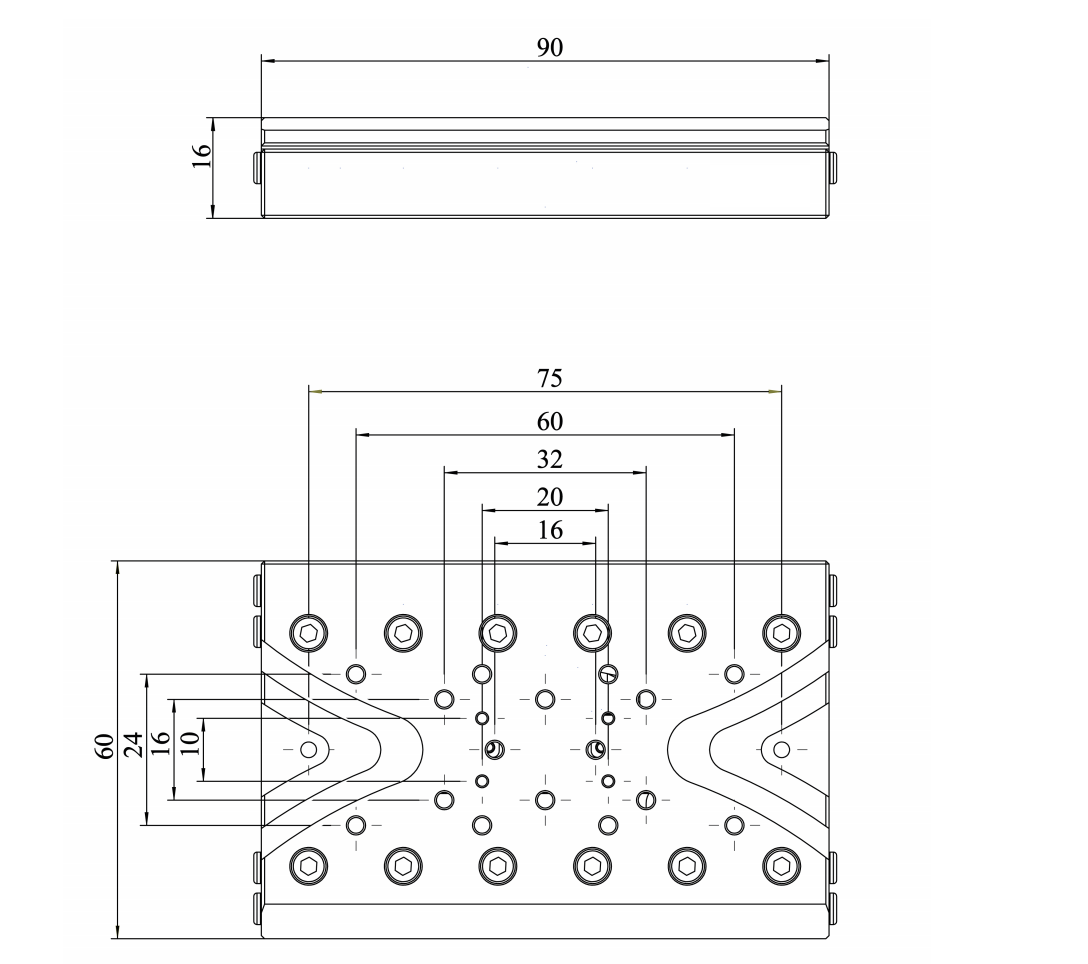

Product size:
