Product Features:
■ Closed-loop minimum step distance can reach 3nm
■ Travel range 20mm, customizable

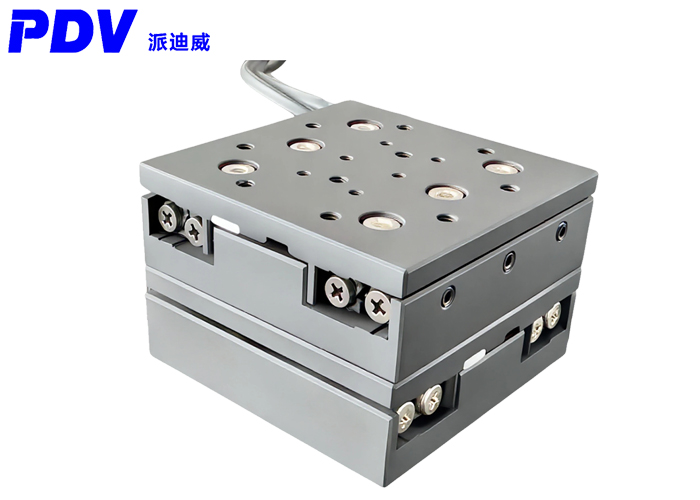

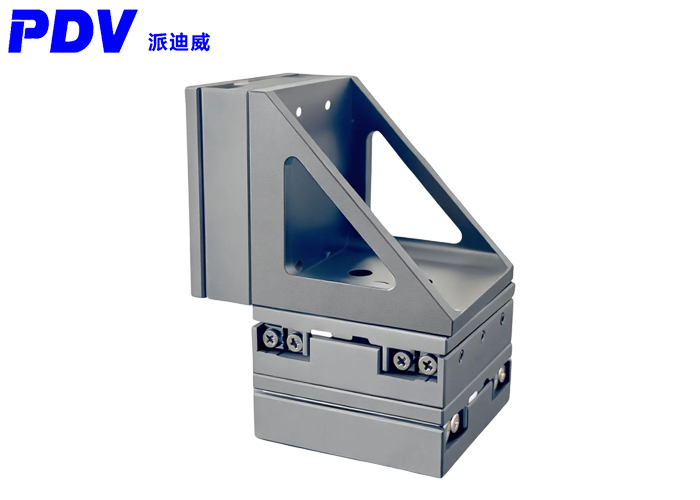

■ Supports two-dimensional and three-dimensional combination expansion, multi-axis collaboration
■ Retention force can reach 3N, with high stability
Product Parameters:
| Model number | PT-NML120 |
| Itinerary | ±10mm |
| Size | 50×50×16.5mmCustomizable |
| Driving force | 2N |
| Retaining force | 3N |
| Maximum no-load speed | 3mm/s |
| Sensor type | Grating sensor |
| Sensor resolution | Options available: 1nm, 5nm, 10nm |
| Pitch/Yaw | <200urad |
| Single/double-ended repeatability accuracy | ±50nm/±120nm |
| Minimum displacement | 3nm |
| Maximum phase load | 2kg |
| Maximum axial load | 200g |
| Electrical interface | D-sub15 |
| Vacuum (optional) | High vacuum compatibility |

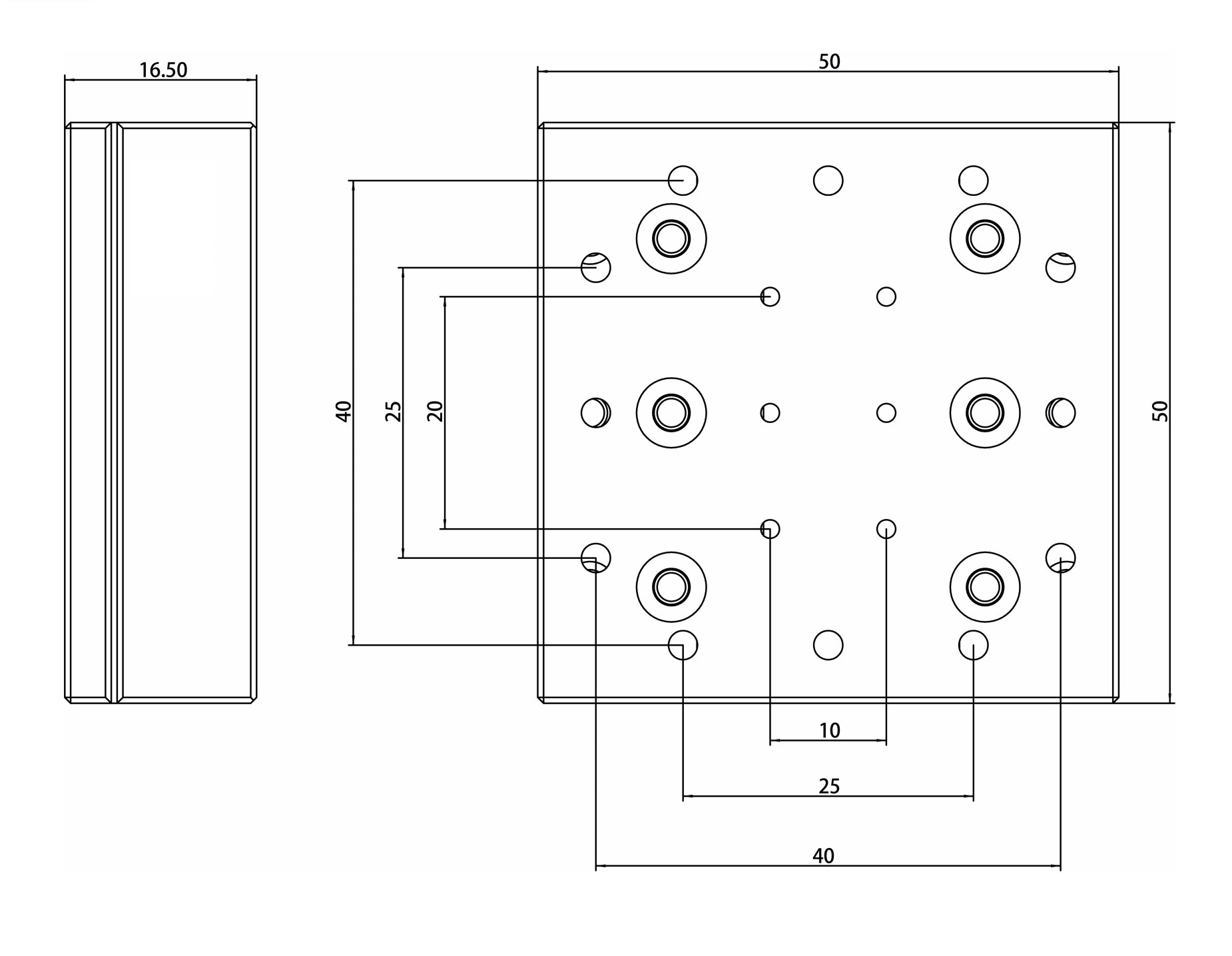

Product Size:
