Product Name: Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking

Share
Specification:

Product specification:


Model Number

PT-SD35

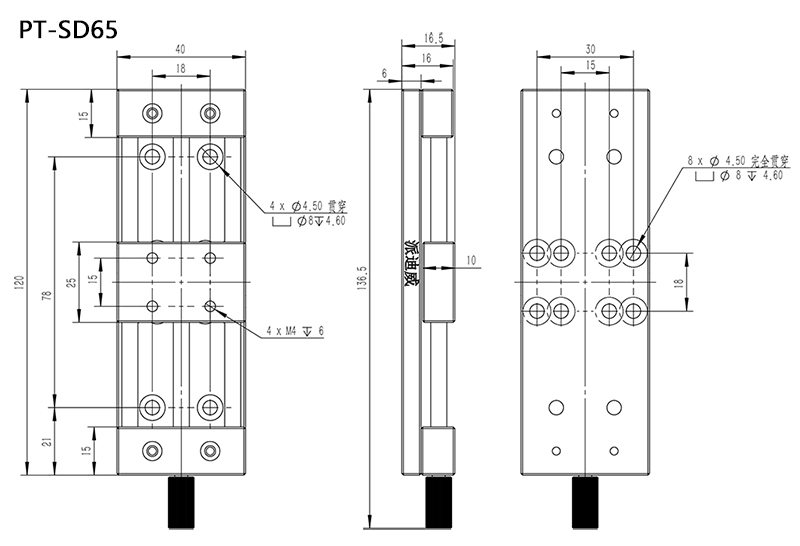

PT-SD65

PT-SD95

Platform size(mm)

40×25

40×25

40×25

Trip(mm)

35

65

95

Displacement of the knob by one turn

0.8mm

0.8mm

0.8mm

Load Capacity(kgf)

4

4

3

Weight(g)

160

180

210


Product details:

Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking

Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking

Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking


Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.

Service:
Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
  • Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
  • Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
  • Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
  • Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
Manual XY Two-Axis Combination Linear Stage , Stretching Table With Locking
FAQ:
Note:

    We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
