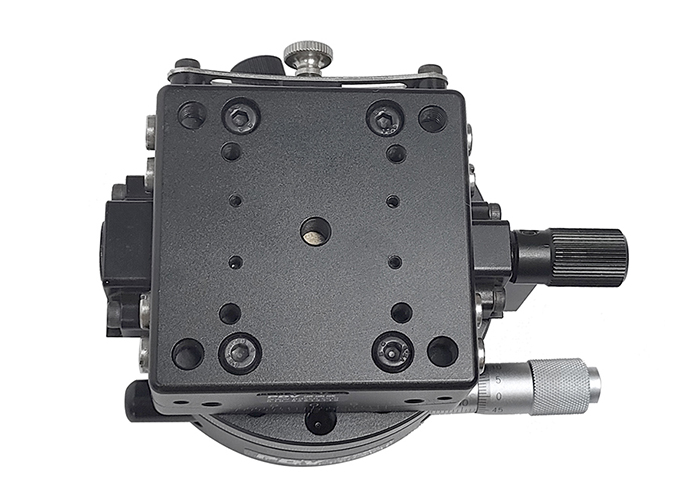

Product Name: Manual Two Axis Combined Stage Goniometer Rotary Table Optical Adjusting Frame

Share
Specification:

Combination mode:

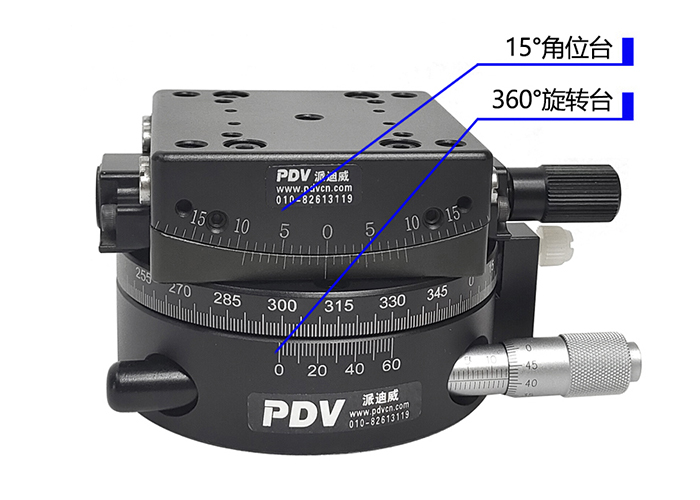

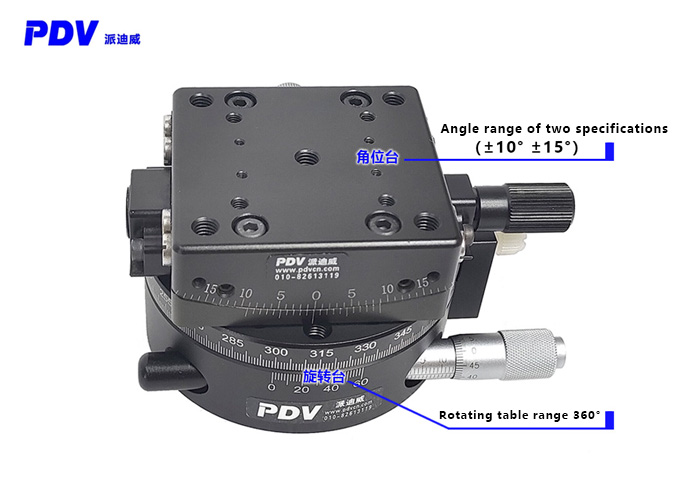

SD206 rotation (360 °)+SD306 goniometer stage (10 °)

SD206 rotation (360 °)+SD308 goniometer stage (15 °)


Product details:

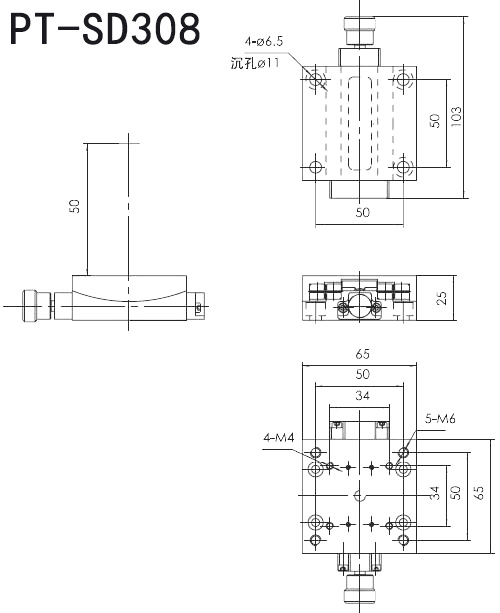

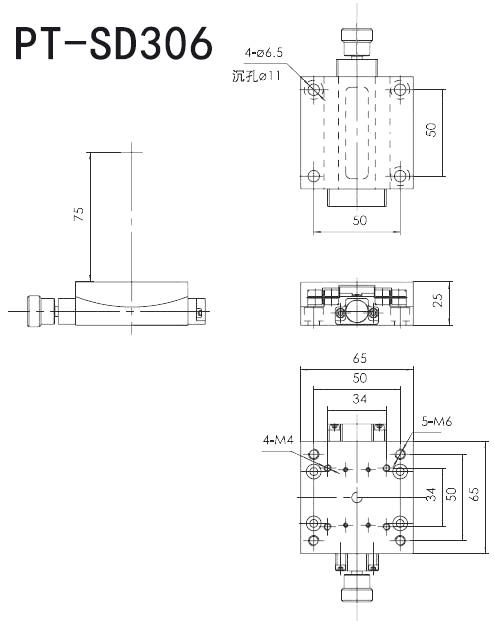

Precision Manual Goniometer Stage: PT-SD306 PT-SD308


■ features:

■ the product provides small angle rotation adjustment.

■ fine grinding V-shaped guide rail + ball guide rail.

■ worm gear pair drive, comfortable movement, precision and reliability.

■ the operation of the table is stable, and the deflection and inclination are very small.

■ paired design, the rotation center is the same point after superposition, and orthogonal biaxial concentric rotation adjustment can be carried out.

■ hand wheel locking, safe and reliable.

■ the table is placed horizontally and has standard connecting holes, which can form a multi-dimensional adjustment frame with other series of products.


Product parameters:

Model Number

PT-SD306

PT-SD308

Platform Size

65mm×65mm

65mm×65mm

Angle Range

±10°

±15°

Height Of Rotation Center

75 mm

50 mm

Rotation Center Deviation

φ0.05 mm

φ0.05 mm

Drive Mechanism

Worm Gear

Worm Gear

Travel Guide

V-Groove&Crossed Ball Bearing

V-Groove&Crossed Ball Bearing

Drive Position

Central Drive

Central Drive

Minimum Scale

Minimum Reading

6′

6′

Minimum Adjustment

(Reference) 3 ″ / 10 subdivision

(Reference) 3 ″ / 10 subdivision

Yawing

80″

80″

Rolling

60″

60″

Load Capacity

10kg

10kg

Weight

0.52kg

0.52kg

Material – Finish

Aluminum Alloy - Black-Anodized

Aluminum Alloy - Black-Anodized

 Manual Two Axis Combined Stage Goniometer  Rotary Table  Optical Adjusting Frame

Manual Two Axis Combined Stage Goniometer  Rotary Table  Optical Adjusting Frame

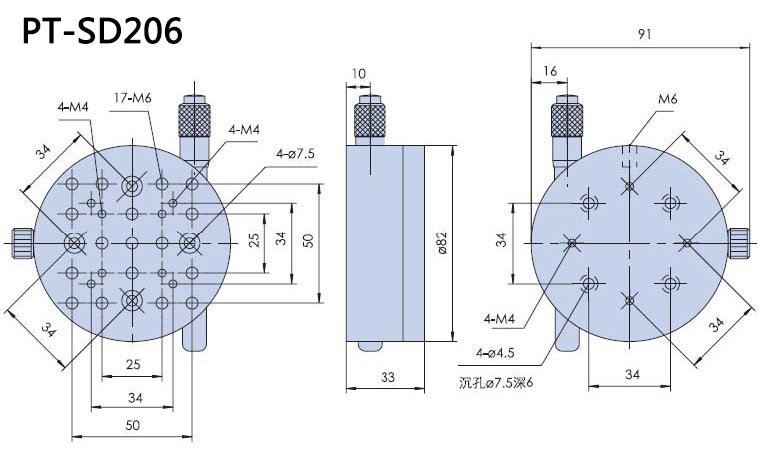

Precision Manual Rotation Stage: PT-SD206


■ features:

■ the table can be rotated 360 ° for rough adjustment.

■ fine adjustment of ± 10 °, micrometer head drive, spring return, high resolution and no empty return.

■ precision shafting design, adjustable shafting clearance and stability.

■ 360 ° laser marking around the circumference for easy reading.

■ there are connecting holes with standard hole spacing at the upper and lower parts, which is convenient to connect with other displacement tables to form a multi-dimensional mobile table.


Product parameters:

Model Number

PT-SD206

Table Diameter

φ82mm

Driving Mode

Micrometer Head in Side

Adjustment Range

coarse 360° fine ±10°

Minimum Characterization

Minimum Reading

2′

Minimum Adjustment

15″

Load Capacity

5kg

Table End Jump

60μ

Transversal Deviation

30μ

Parallelism

60μ

Weight

0.5kg

Material – Finish

Aluminum Alloy - Black-Anodized

Manual Two Axis Combined Stage Goniometer  Rotary Table  Optical Adjusting Frame
