Precision Manual Lifting Stage: PT-SD409

Characteristic:

It is used for lifting adjustment of large stroke, non quantitative and large load.

Adopt scissor shaped lifting support and fine grinding lead screw drive.

The upper and lower sides of the porous design, strong applicability, can be used as the installation surface.

Equipped with locking handwheel, safe and reliable.

The base and table have connecting holes with standard hole spacing, which is convenient to be combined with other series products.


Product parameters:

Model Number

PT-SD409

Stage Size

140 mm×220mm

Actuator Type

Precision Whet Thread

Vertical Travel

120 mm

Minimum Adjust Distance

Load Capacity

25kg

Weight

4.6kg

Material

Aluminum Alloy

Surface Treatment

Black-Anodized

Manual Two Dimensional Combined Stage Precision Lifting Table Large Travel Translation Table / Bearing 100KG

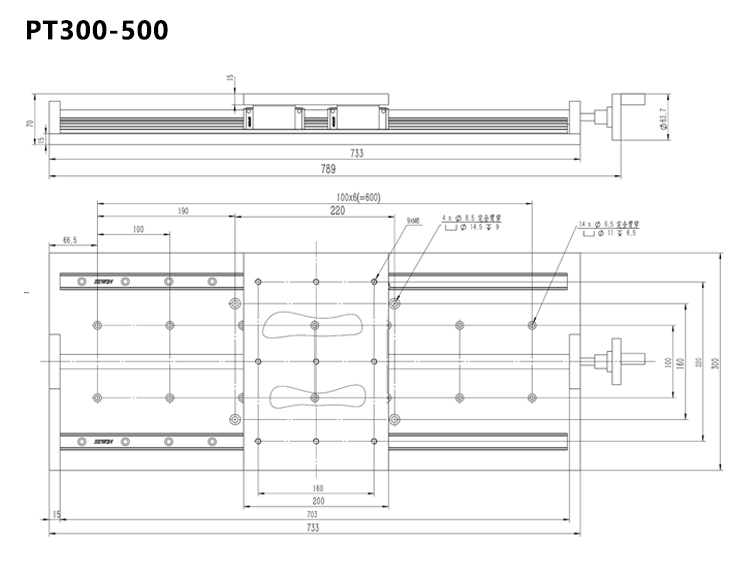

Manual Translation Stage PT300 Series

Product specification:

Screw rod specification: guide screw

Lead: 10mm

Smooth bar diameter: 20mm

Repeated positioning accuracy: ± 0.03mm

High precision and heavy load


Model Number

Platform Size

Bottom length

Trip

Load Capacity

PT300-100

200*300MM

333MM

100MM

80KG

PT300-200

200*300MM

433MM

200MM

100KG

PT300-300

200*300MM

533MM

300MM

120KG

PT300-400

200*300MM

633MM

400MM

140KG
