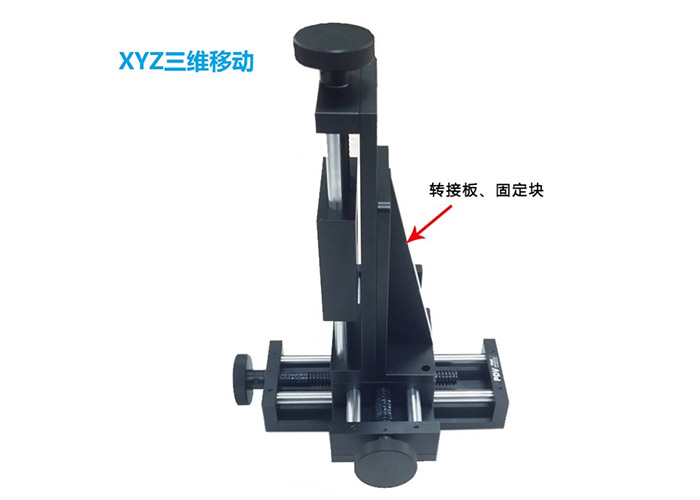

Product Name: Screw Linear Stage XYZ Manual Three-axis Combined Platform

Share
Specification:

Three products combined use, a variety of specifications can be selected.


Product parameters:

Lead: 3 mm

Lead screw diameter: 14MM

Diameter of optical bar: 12MM


Model

PT-ST25

PT-ST50

PT-ST100

PT-ST200

PT-ST300

PT-ST400

PT-ST500

Platform size

65x65mm

65x65mm

80x80mm

80x80mm

80x80mm

80x80mm

80x80mm

Trip

25mm

50mm

100mm

200mm

300

400

500

Lead Screw Pitch

1.25mm

1.25mm

3mm

3mm

3mm

3mm

3mm

Load Bearing

15kg

20kg

20kg

20kg

20kg

20kg

20kg

Dead Weight

0.8kg

1kg

1.8kg

2.8kg

3kg

4kg

5kg

Material Surface Treatment


6061 Aluminum Alloy - Black Or Anodized


Product details:

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

PT-ST200 Manual Stretching Stage,X Axis Linear Stretching Slide Stage With Platen

Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
