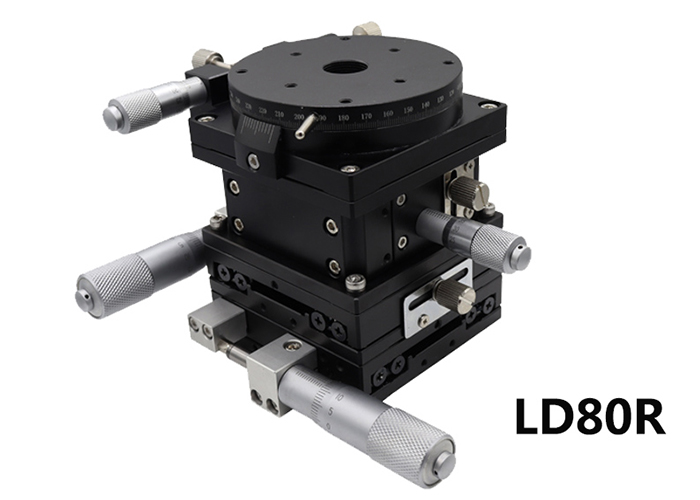

Product Name: XYZR four axis precision displacement combination platform lifting platform displacement platform

Share
Specification:

Model Number

LD40R

LD60R

LD80R

LD90R

LD125R

Direction of movement

XYZR four directions

material

Aluminum alloy   (black anode)

Drive mode

Micrometers

Platform Size

φ38mm

φ60mm

φ80mm

φ90mm

φ125mm

Travel

XY-axis:±6.5mm

Z-axis:10mm

360 ° rough adjustment, ± 5 ° fine adjustment

XY-axis:±12.5mm

Z-axis:10mm

360 ° rough adjustment, ± 5 ° fine adjustment

XY-axis:±6.5mm

Z-axis:20mm

360 ° rough adjustment, ± 5 ° fine adjustment

Load

9.8N

29.4N

39.2

39.2

49N

Min Scale

0.01

Weight

0.54kg

0.91kg

2.14kg

2.33kg

6kg


Product details:

Product Dimension Map

XYZR four axis precision displacement combination platform lifting platform displacement platform

XYZR four axis precision displacement combination platform lifting platform displacement platform
