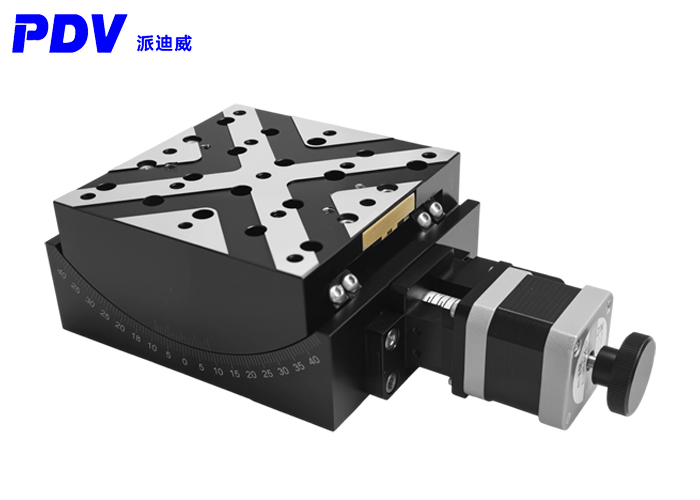

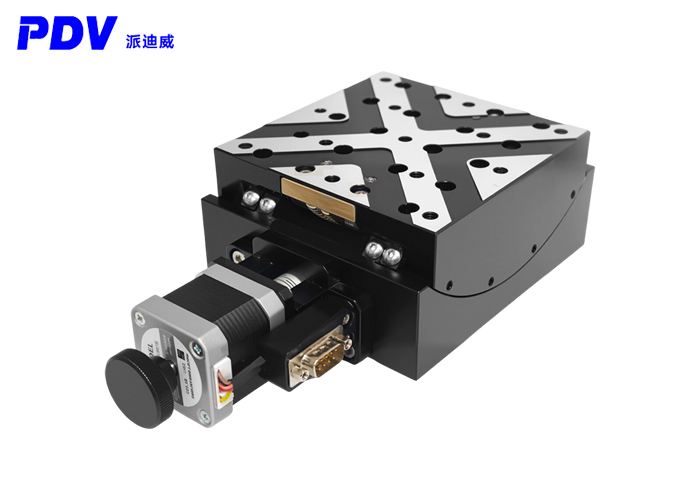

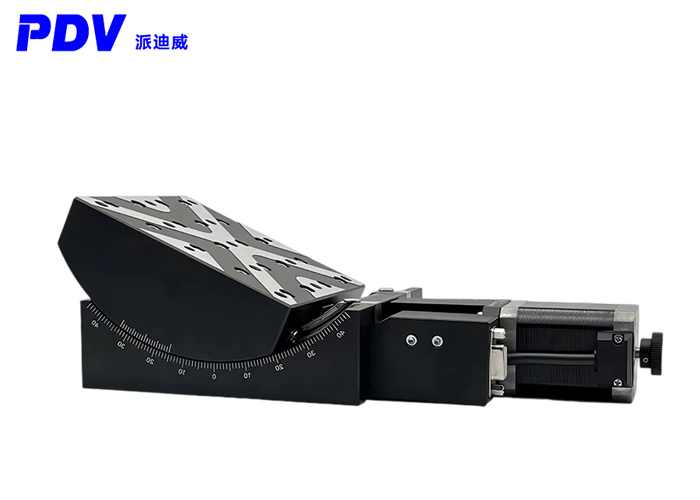

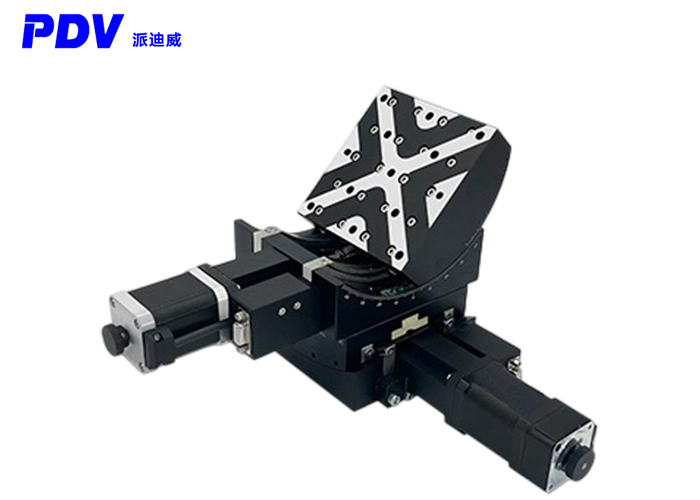

High precision and stable performance
This L series adopts worm gear and worm transmission mechanism and cross guide rails, which combines the advantages of high transmission accuracy and light weight. The platform is ultra-thin and the structure is compact, making it suitable for embedding into equipment for use.
High-density aluminum alloy
The main body of the platform is made of high-quality aluminum alloy and undergoes surface oxidation treatment. It has a high density and excellent corrosion resistance.
Product parameters
| Model | PT-GD145 | PT-GD124 | PT-GD145+PT-GD124"Combination" |
| Countertop size | 120×120mm | ||
| Swing range | ±45° | ±24° | "Upper axis"±45°，Lower axis 24° |
| Transmission mode (reduction ratio | Worm gear and worm(1：222) | Worm gear and worm(1：386) | Worm gear and worm(1：222) Worm gear and worm(1：386) |
| Main material | Aluminum alloy | ||
| Guide rail form | Cross-shaped guide rail | ||
| Maximum moving speed | 9°/sec | 7°/sec | "Upper axis"9°/sec Lower axis7°/sec |
| Unidirectional positioning accuracy | 0.01° | ||
| Repeat positioning accuracy | 0.005° | ||
| Swing center accuracy | 0.1mm | 0.15mm | |
| Swing center height | 40mm | 105mm | 40mm |
| Limit position sensor | have | ||
| Origin sensor | have | ||
| Connector | DB15 Serial Port (female head) | ||
| Motor | no | ||
| Step Angle | 1.8° | ||
| Input voltage | 24v | ||
| Load | 20kg | 20kg | 18kg |
| Net weight | 4.3kg | 3.9kg | 8.2kg |

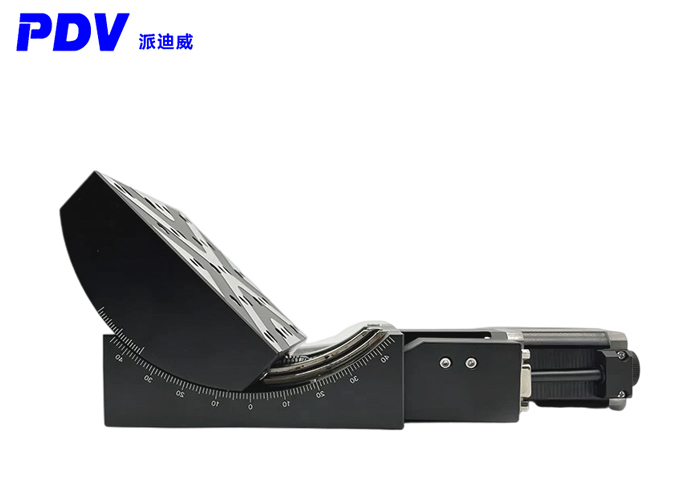

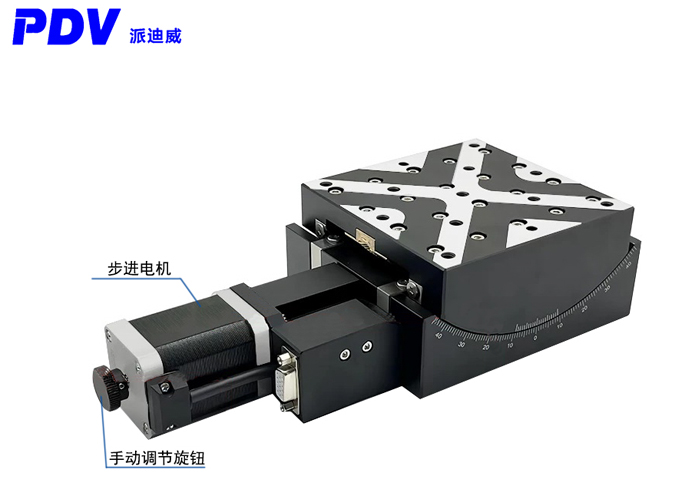

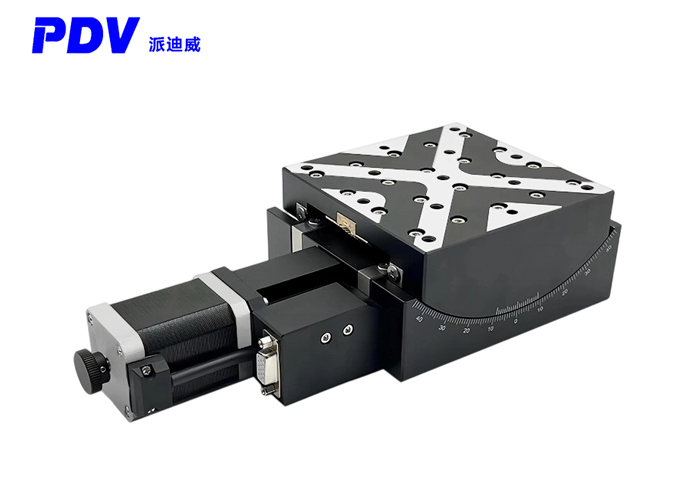

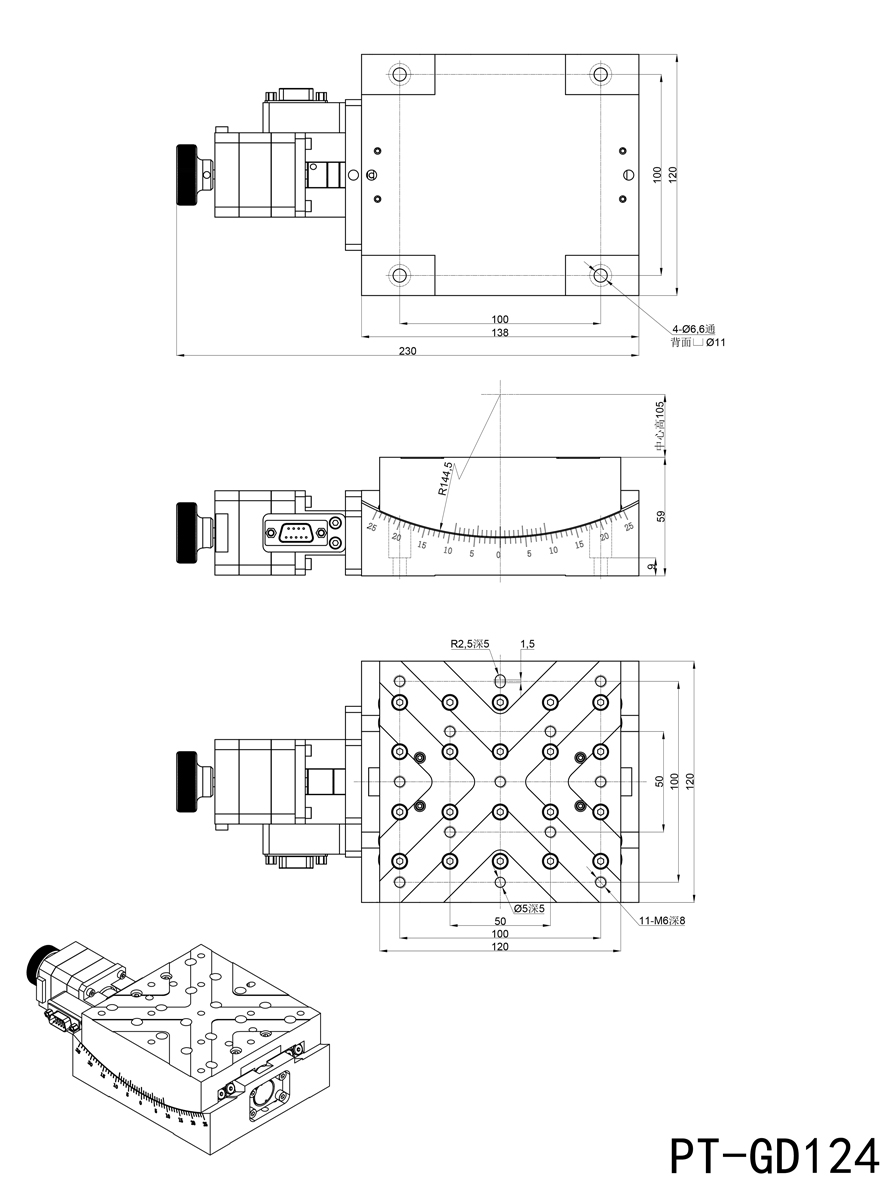

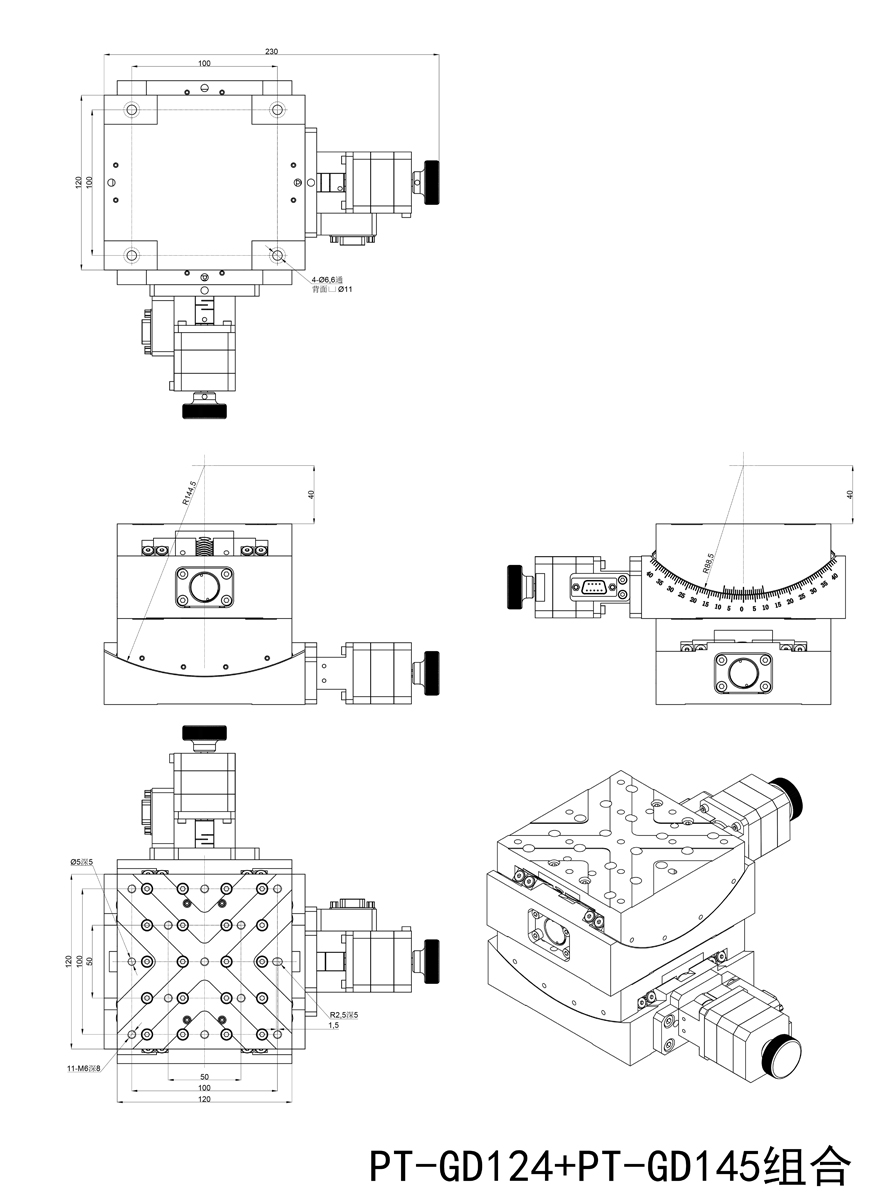

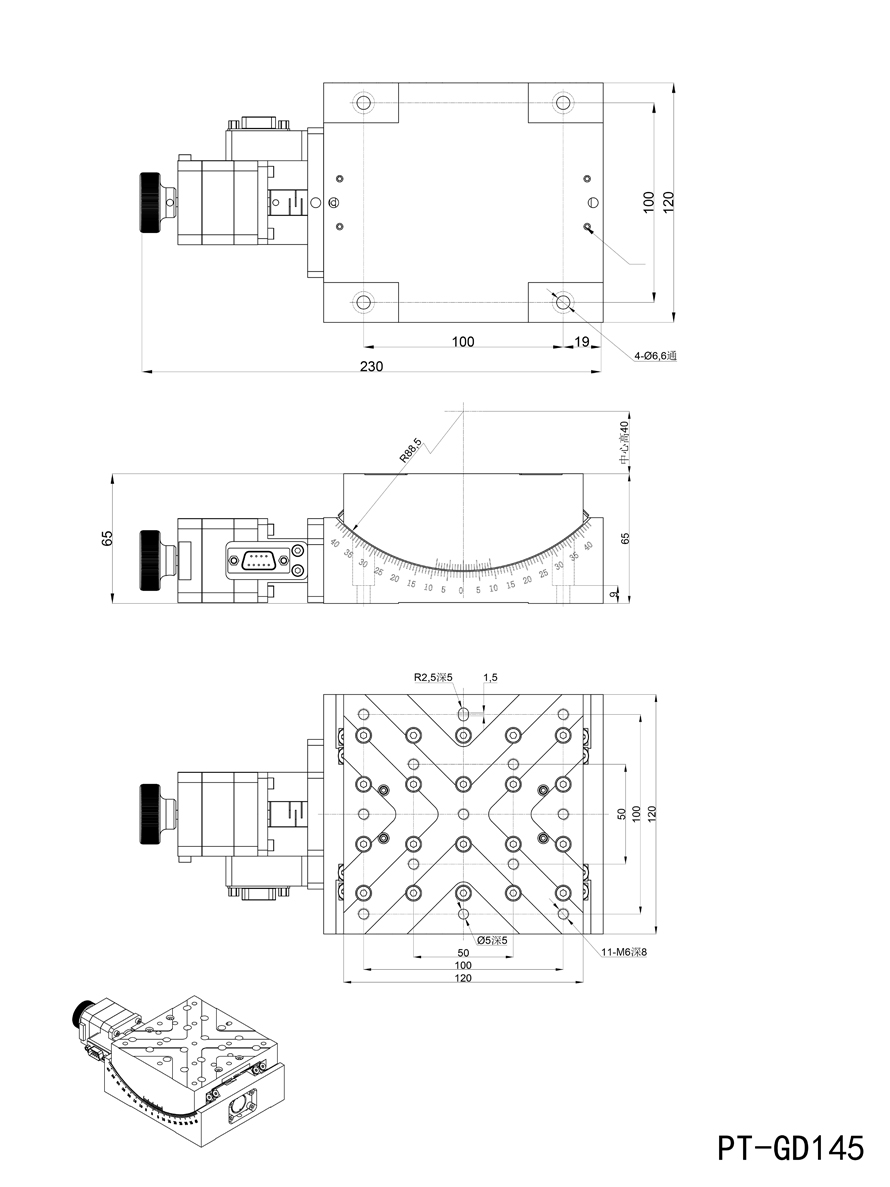

Product Size:
