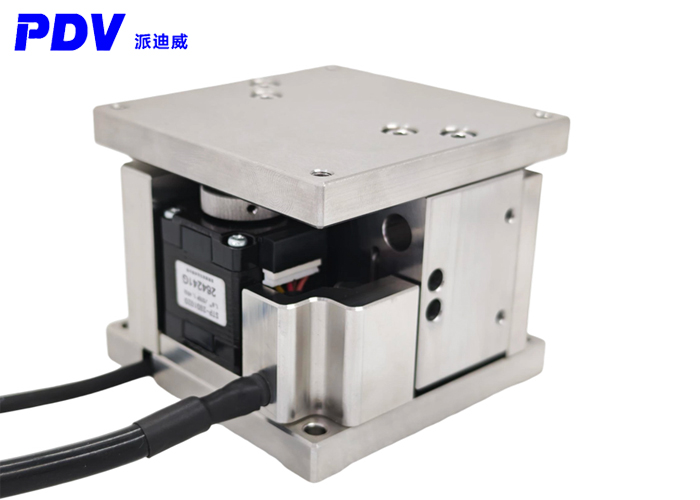

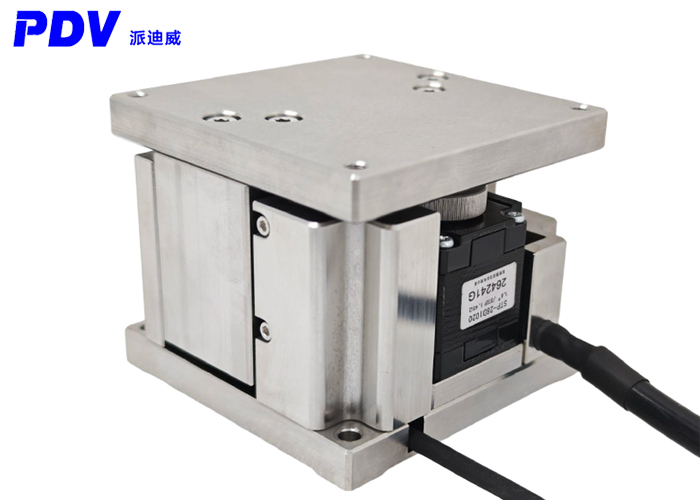

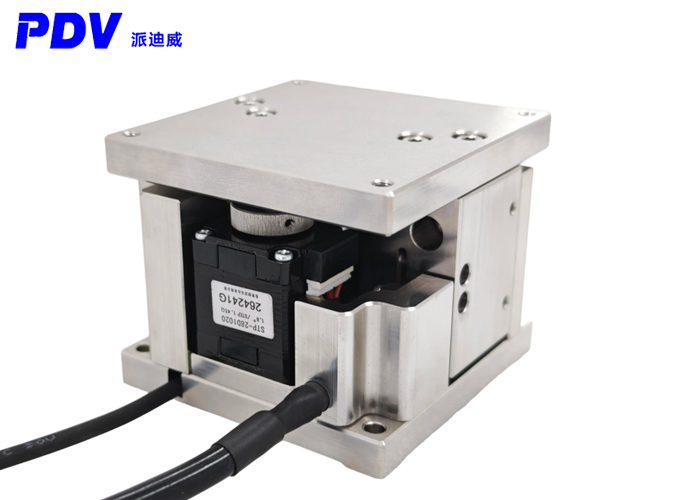

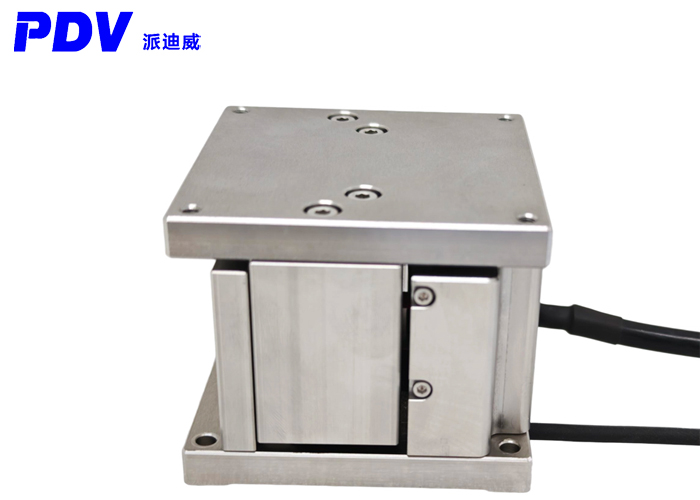

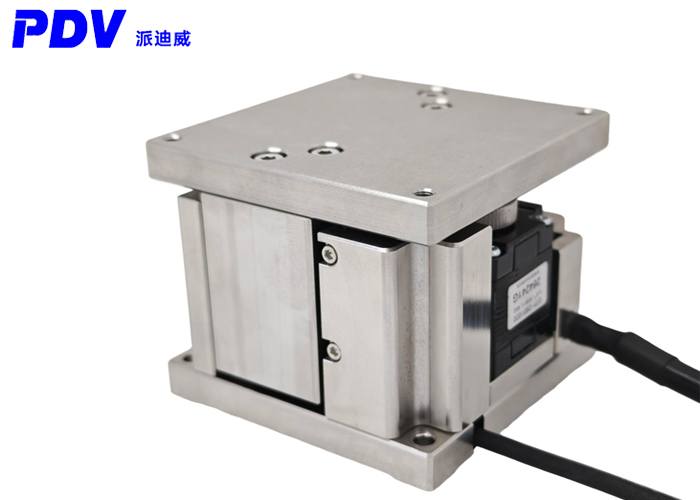

Model Number | PT-GZ40 | PT-GZ60 | PT-GZ80 | ||
Mechanical Specification | Platform Size | 40×40mm | 60×60mm | 80×80mm | |
Travel | 6mm | 8mm | 10mm | ||
Transmission Mode | Belt+ball screw Φ6，Lead 1mm | ||||
Track | Linear ball-guided | ||||
Slide Material / Surface Treatment | Steel/electroless nickel plating | ||||
Weight | 0.6kg | 1.0kg | 1.5kg | ||
Coupling | No coupler configured | ||||
Accuracy Class | N：Standard | ||||
Outgoing Direction | N：General outgoing line | ||||
Accuracy Specification | Resolution | 5μm/2.5μm | 2.5μm/1.25μm | ||
Speed (Full Step) | 12mm/sec | 6mm/sec | |||
One-Way Positioning Accuracy | 30μm | ||||
Repeated Positioning Accuracy | ±5μm | ||||
Load Capacity | 3Kgf | 5Kgf | |||
Idling | 5μm | ||||
Parallelism | 50μm | ||||
Motion Straigheness | 4μm | ||||
Motion Parallelism | 20μm | ||||
Electrical Specification | Motor | Type/Output Shaft Type | 2-phase step/28 double output shaft | ||
Brand/Model | (Optional) | ||||
Driver | Brand/Model | (Optional) | |||
Connector | Slide Side Joint | 15Pin Male Connector D-SUB | |||
Controller Side joint | 15Pin Female connector D-SUB(Optional) | ||||
Sensor | Travel Origin Sensor | Photoelectric Sensor EE-SX4134 | |||
Travel Limit Sensor | |||||
Supply Voltage | 24V±10% | ||||
Control Output | NPN Idle Collector Output Below 24V 8mA | ||||
Output Control | Detection (induction): output transistor OFF (non-conductive) | ||||
◎ The standard joint type of the product is D-SUB.
◎ If the outgoing line of the organization needs to be HRS, please inform separately.
◎ General outgoing line is standard, regardless of left and right outgoing lines.
Remarks:
The above price is an economical configuration, including one 35cm long ordinary cable, one D-SUB15pin male connector, one Xinnong 28 stepper motor, and one photoelectric switch. The basic parameters are designed and produced according to the standard travel. If the customer has other technical requirements, the specific price shall be subject to the actual offer.
