Product Name: PJ110-15 (XY axis) High-Precision Electric Angle Position Stage XY Arc Swing Table Goniometer

Share
Specification:

Two electric goniometer stages are used in combination.


Model Number

                    PJ110-15

Angle Range

                    ±15°

Platform Size

                    65×65mm

Transmission Ratio

                    252∶1

Rotation Center Height

                    50 mm±0.2 mm

Driving Mechanism

                    Worm Gear

Guide Rail Form

                    Crossed Roller Bearing

Stepper Motor (1.8 °)

                    42BYG

Main Material

                    Aluminum Alloy

Surface Treatment

                    Black-Anodized

Central Bearing

                    5kg

Weight

                    0.75kg

Design Resolution

                    ≈0.007°≈25″(Non-MS Driver);

                    ≈1.3″(20MS Drive)

Accuracy Of Rotation Center

                    0.03 mm

Velocity

                    10°/sec

Repeat Positioning Accuracy

                    ±4″

Absolute positioning accuracy

                    ±9″

Empty Return

                    ±4″

Lose Step

                    3″

Product details:

Motorized Goniometer Stage (worm gear): PJ110-15

Product features:

■ stepper motor is equipped as standard, and the company's zd-kz series motion controller can realize automatic control.

■ the rotating shaft system is precision machined by multi-channel technology, with high matching accuracy, large bearing capacity and long service life.

■ it adopts the worm gear and worm structure with precision fitting, which is comfortable to move, can rotate in any forward and reverse direction, and has small empty return.

■ the ingenious designed air return structure can adjust the air return clearance caused by long-term use.

■ the special structural design ensures the low deflection and inclination of the corner table, making the movement more stable.

■ the scale ring on the periphery of the table is a laser marking scale, which can rotate relative to the table to facilitate initial positioning and reading.

■ stepper motor and worm are connected through imported high-quality elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces eccentric disturbance and low noise.

■ the electric angle table can be used horizontally or vertically, and can form a multi-dimensional electric adjustment table with other types of tables.

■ the electric angle table is designed in pairs, which can be superimposed and can be used alone. The two rotation radii are carefully designed, and can rotate around a common point in two dimensions after superposition.

■ it has limit function and initial zero position function. It is equipped with servo motor and rotary encoder. It accepts product restructuring and customization.


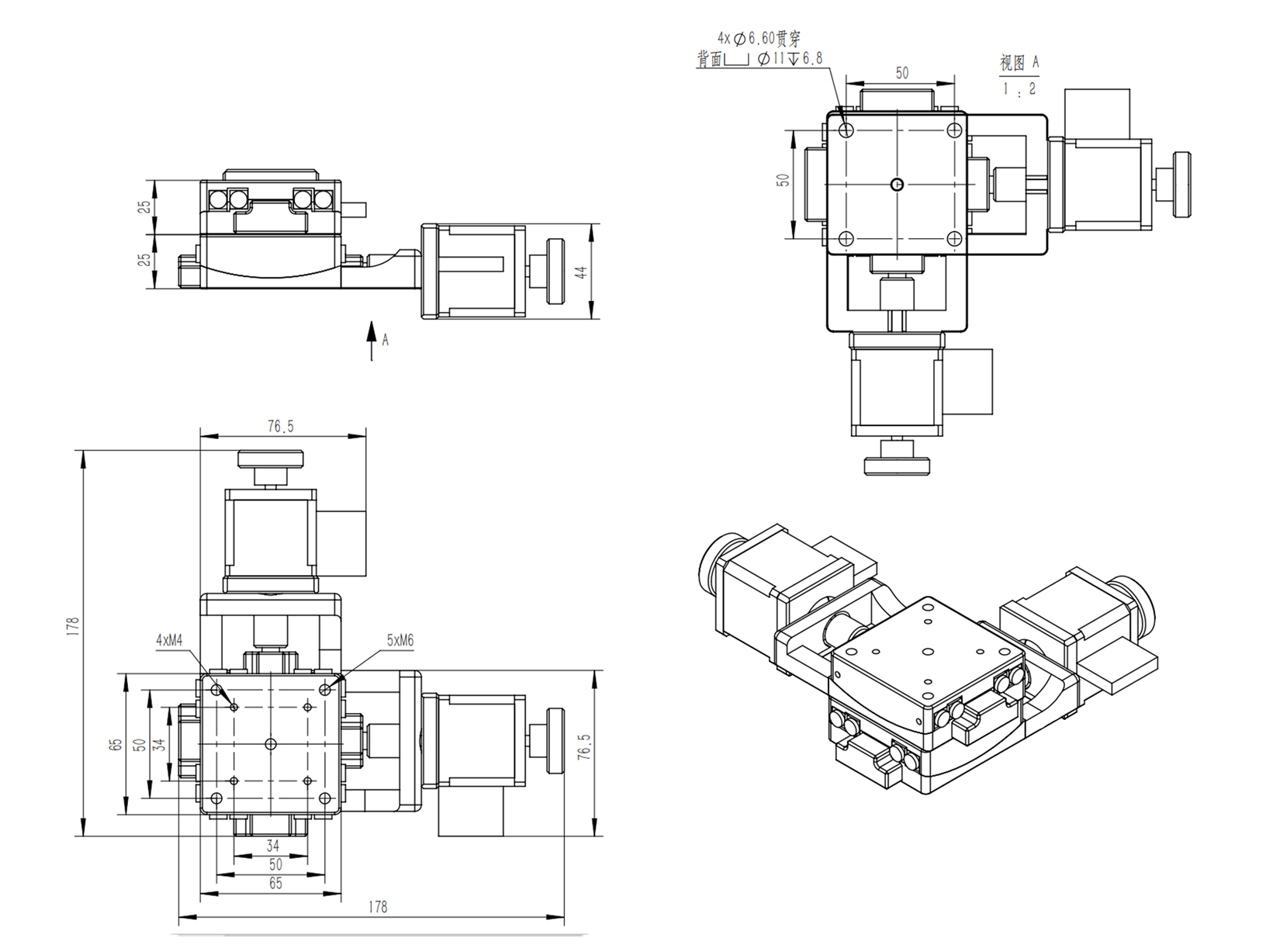

PJ110-15 Product dimension drawing:
