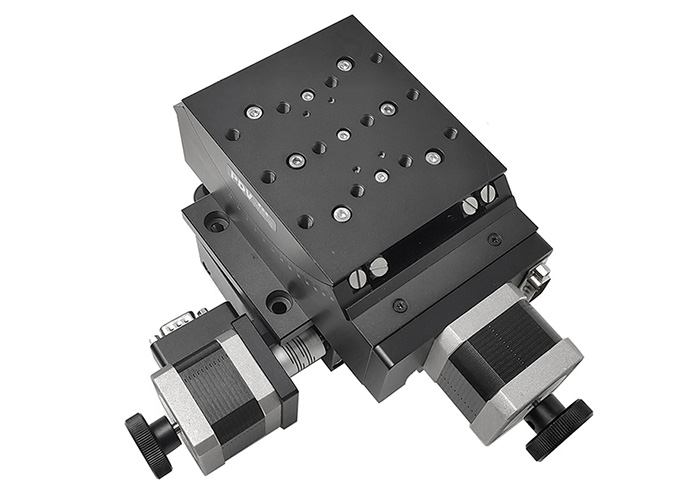

Product Name: Motorized Two Axis Combined Stage High Precision Electric Displacement Table Rotary Goniometer Stage

Share
Product details:

The product does not include the controller, and the controller is ordered separately.

Precision Motorized Goniometer Stage (Worm Gear): PT-GD303

Product features:

※ stepper motor is equipped as standard, which can be automatically controlled by the company's motion controller.

※ the rotating shaft system is precision machined by multi-channel technology, with high matching accuracy, large bearing capacity and long service life.

※ it adopts the worm gear and worm structure with precise research and matching, with comfortable movement, forward and reverse rotation and small empty return.

※ the ingeniously designed air return structure can adjust the air return gap caused by long-term use.

※ the special structural design ensures the low deflection and inclination of the corner table, making the movement more stable.

※ the scale circle on the periphery of the table is a laser marking scale, which can rotate relative to the table to facilitate initial positioning and reading.

※ stepper motor and worm are connected through elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces eccentric disturbance and low noise.

※ the electric angle table can be used horizontally or vertically. It can form a multi-dimensional electric adjustment table with other types of tables.

※ the electric angle table is designed in pairs, which can be superimposed and can be used alone. The two rotation radii are carefully designed. After superposition, it can rotate around a common point in two dimensions.

※ it has limit function and initial zero function. It is equipped with servo motor and rotary encoder. It accepts product restructuring and customization.


Model Number

PT-GD303

Rotation Range

±45°

Platform Size

90×105mm

Transmission Ratio

280∶1

Height of Rotation Stage

50 mm±0.2 mm

Drive Mechanism

Worm Gear

Travel Guide

Crossed Roller Bearing

Stepper Motor (1.8°)

42BYG

Material Surface

Aluminum Alloy (Black-Anodized)

Central Load

10kg

Weight

2.45kg

Design Resolution

≈0.005°≈18″(Non-MS Driver)

≈1″(20MS Drive)

Rotation Center Deflection Accuracy

0.03 mm

Max Velocity

7°/sec

Repeatability

±3″

Absolute Accuracy

±8″

Backlash

±3″

Lost Motion

3″


Precision Motorized Rotation Stage (Worm Gear) :PX110-100


Product characteristics :

※ Standard step motor 9 pin interface, the company's motion controller can realize automatic control.

※ Rotating shafting is made of multi-channel precision processing, with high precision, large load bearing and long service life.

※ Precise grinding worm gear structure, comfortable movement, can be arbitrary forward and reverse rotation and small return.

※ Exquisite design of void return structure, can adjust the void return gap caused by long-term use.

※ Special structure design ensures low end jump and eccentricity of rotating table, making rotating movement more stable.

※ The center through hole of the rotary table has strict coaxiality requirements with the rotary center, and the center aperture of the rotary table has strict tolerance limits, which is convenient for customers to make precise positioning.

※ The scale circle outside the table is a laser scale, which can rotate relative to the table to facilitate initial positioning and reading.

※ Stepper motor and worm are connected by high-quality elastic coupling, synchronous transmission, good depolarization performance, reduce eccentric disturbance and low noise.

※ Electric rotating table can be used flat or vertical, and can form multi-dimensional electric adjusting table with other kinds of tables.

※ Optional: add limit function, add initial zero, replace servo motor, add rotary encoder, accept product restructuring and customization.

※ Three-phase stepping motor or servo motor can be replaced to increase the rotation speed and torque.


Model Number

PX110-100

Structure

Rotation Range

360°

Platform Size

φ100mm

Transmission Ratio

180∶1   90:1

Drive Mechanism

Worm Gear

Travel Guide

Bearing

Stepper Motor (1.8°)

42BYG

Material Surface

Aluminum Alloy (Black-Anodized)

Central Load

45kg

Weight

1.7kg

Accuracy

Design Resolution

0.01°(Non-MS Driver)

0.0005°=1.8″(20MS Drive)

Max Velocity

25°/sec

Repeatability

0.005°=18″

Absolute Accuracy

0.01°=36″

End jump accuracy

15μ

Backlash(μm)

0.005°=18″

Eccentricity

Lost Motion(μm)

0.005°=18″

Parallelism

80μ


Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
